Basic Info.
Model NO. | 904L |
Hole Shape | Square |
Type | Stainless Steel Plain Wire Mesh |
Weave Technique | Plain Weave,Twill Weave,Dutch Weave,etc. |
Technique | Woven |
Grid Counting | 1-400 Grids |
Characteristics | Acid,Alkali and Temperature Resistance |
Processing Services | Welding,Cutting |
Trademark | OEM\\ODM |
HS Code | 7508109000 |
Material | 304 316 316L 310S 904 904L |
Application | Filter,Construction Wire Mesh,Protecting Mesh,Screen,Decorative Mesh,Fence Mesh,Barbecue Wire Mesh,Window Curtain,Cages |
Material Type | Stainless Steel Wire |
Wire Mesh Width | 0.5-2 Meters |
Certification | ISO9001 |
Mesh Roll Size | 1X30m 2X30m 1.524X30m 0.914X30m etc. |
Usage | The Main Functions Are Filtering,Screening and Sc |
Specification | can be customized |
Origin | Hebei,China |
Production Capacity | 1000000PCS/Year |
Packaging &Delivery
Package Size | 30.00cm 10.00cm 10.00cm |
Package Gross Weight | 2.000kg |
Product Description
Product Name | 904L Stainless Steel Wire Mesh / 904L |
Material Grade | UNS N08904,DIN 1.4539,AISI 904L |
Application | Chemical Filtration,Seawater Treatment,FGD Industry,Pharmaceutical &Food Processing,Oil &Gas Filtration |
Customization | Support Custom Mesh Size,Wire Diameter,Weaving Type &Dimensions |
Product Overview

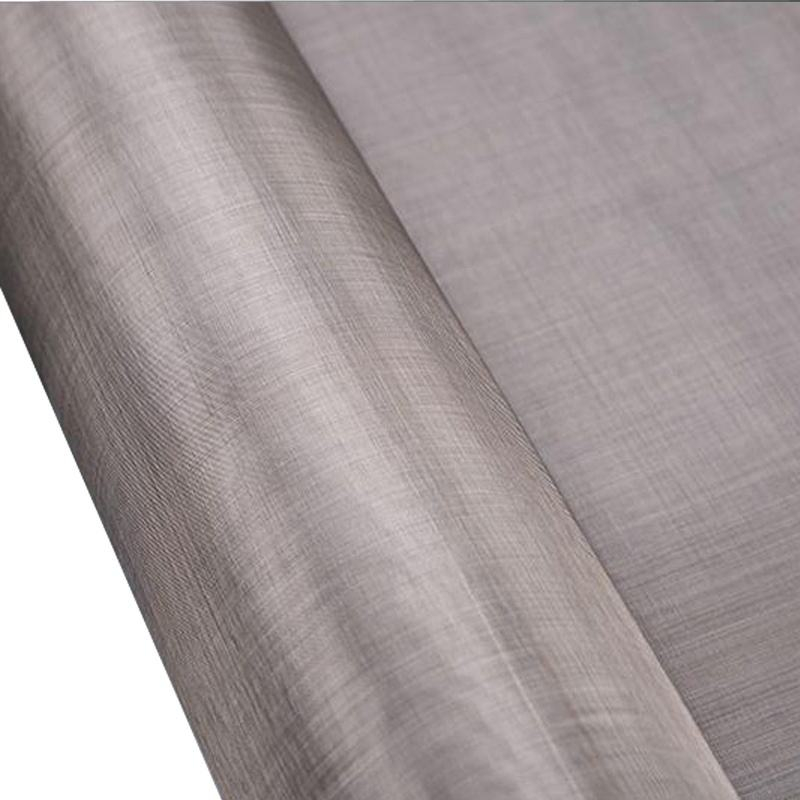

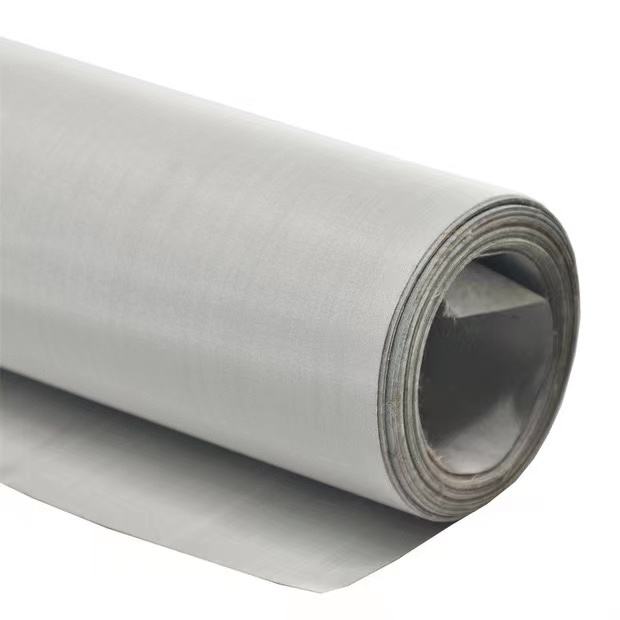

904L Stainless Steel Wire Mesh is a super austenitic stainless steel mesh made of 904L alloy, which is a low-carbon, high-nickel, high-molybdenum and copper-containing material. It is recognized as the "corrosion-resistant king" in the filtration industry, with far superior corrosion resistance than 316L and 317L stainless steel mesh. It is specially designed for harsh working environments such as strong acid, high chloride, and seawater, and is widely used in industrial filtration, chemical processing, marine engineering and other fields that require high corrosion resistance.

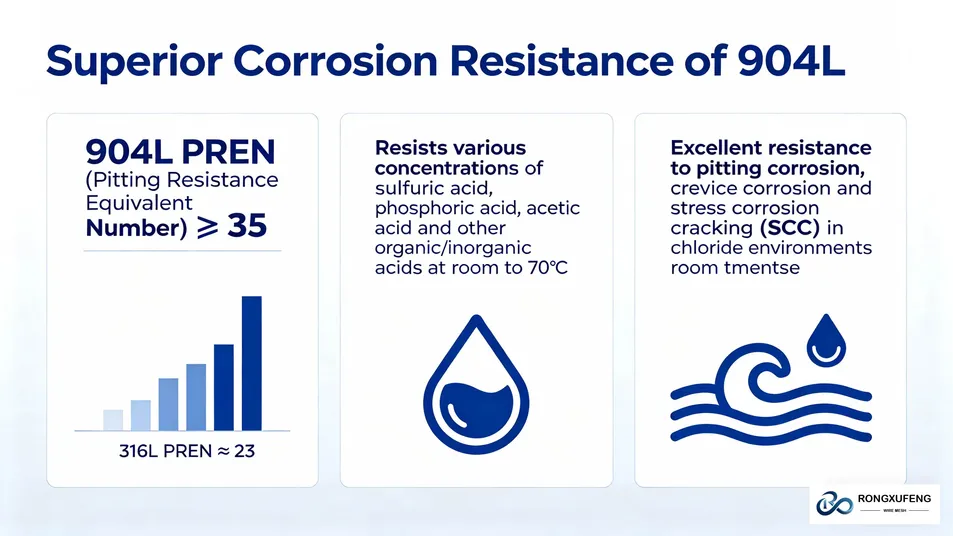

Superior Corrosion Resistance
• PREN (Pitting Resistance Equivalent Number) ≥ 35, far higher than 316L (≈23). It can resist various concentrations of sulfuric acid, phosphoric acid, acetic acid and other organic/inorganic acids at room temperature to 70℃; it has excellent resistance to pitting corrosion, crevice corrosion and stress corrosion cracking (SCC) in chloride environments such as seawater and brine.

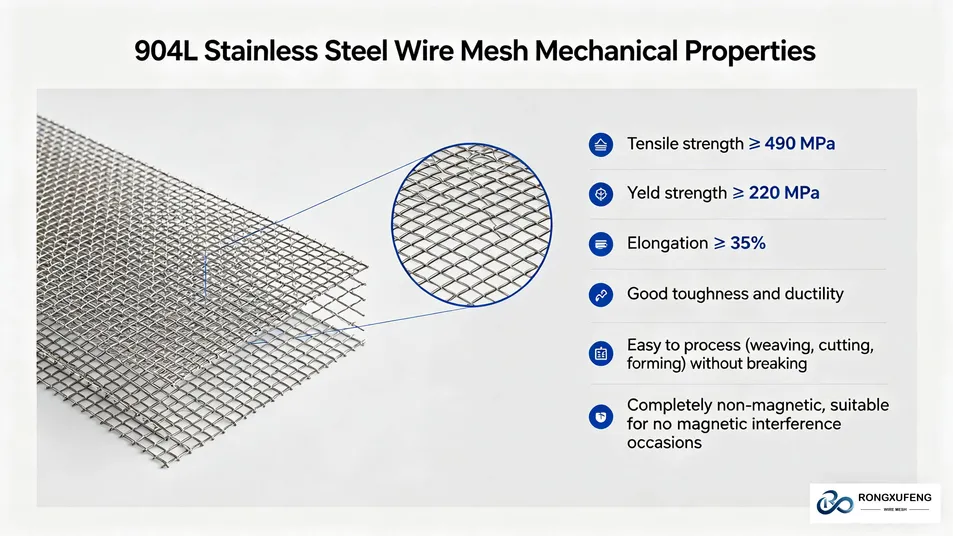

Excellent Mechanical Properties
• Tensile strength ≥ 490 MPa, yield strength ≥ 220 MPa, elongation ≥ 35%, good toughness and ductility, easy to process (weaving, cutting, forming) without breaking. It is completely non-magnetic, suitable for occasions requiring no magnetic interference.

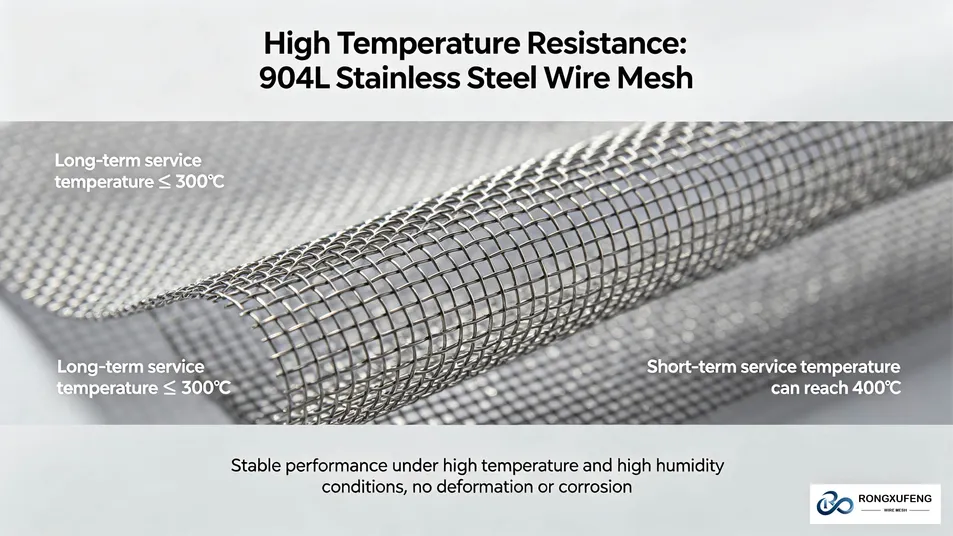

High Temperature Resistance
Long-term service temperature ≤ 300℃, short-term can reach 400℃, stable performance under high temperature and high humidity conditions, no deformation or corrosion.

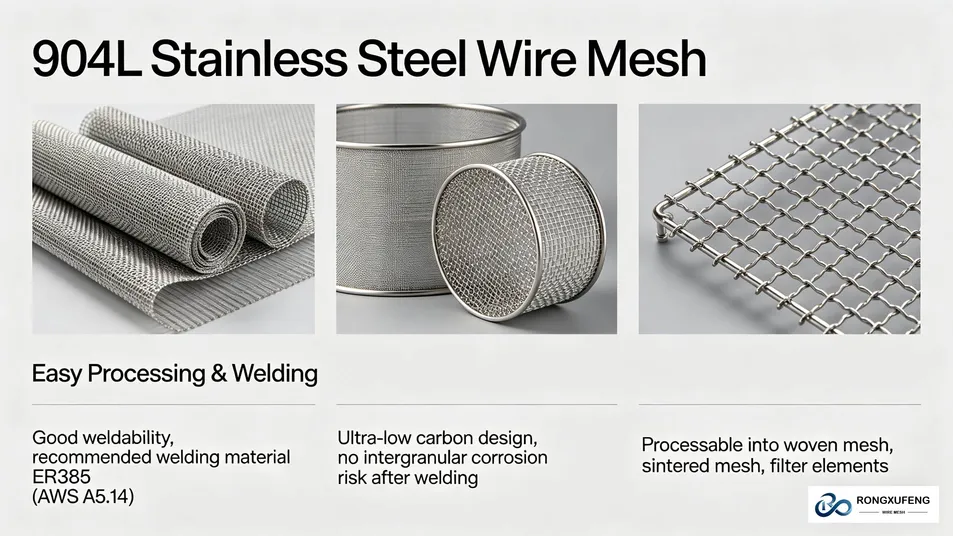

Easy Processing & Welding
• Good weldability, recommended welding material ER385 (AWS A5.14); ultra-low carbon design, no intergranular corrosion risk after welding. It can be processed into various forms such as woven mesh, sintered mesh and filter elements.

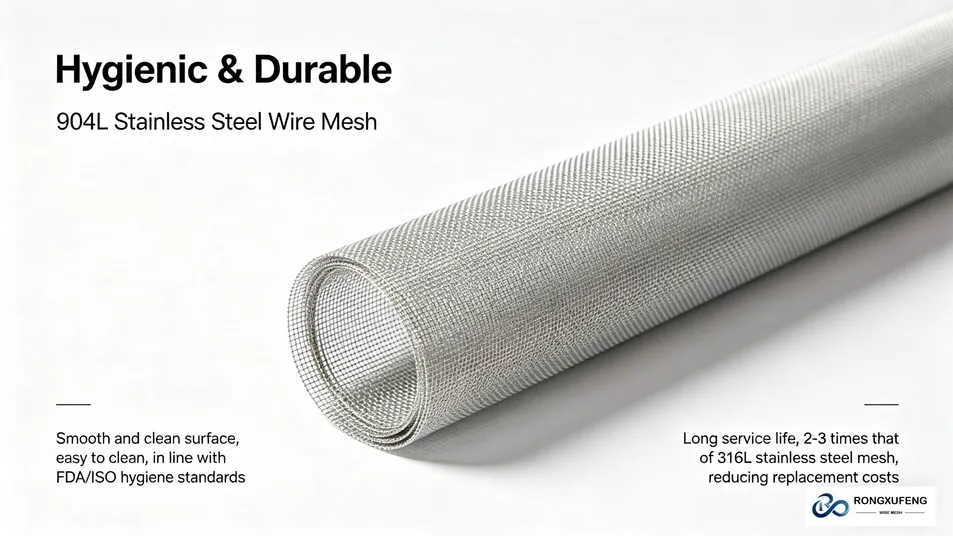

Hygienic & Durable
Smooth and clean surface, easy to clean, in line with FDA/ISO hygiene standards; long service life, 2-3 times that of 316L stainless steel mesh, reducing replacement costs
Specification
Item | Specification | Item | Specification |
Material | 904L (UNS N08904,DIN 1.4539,AISI 904L) | Density | ≈8.0 g/cm³ |

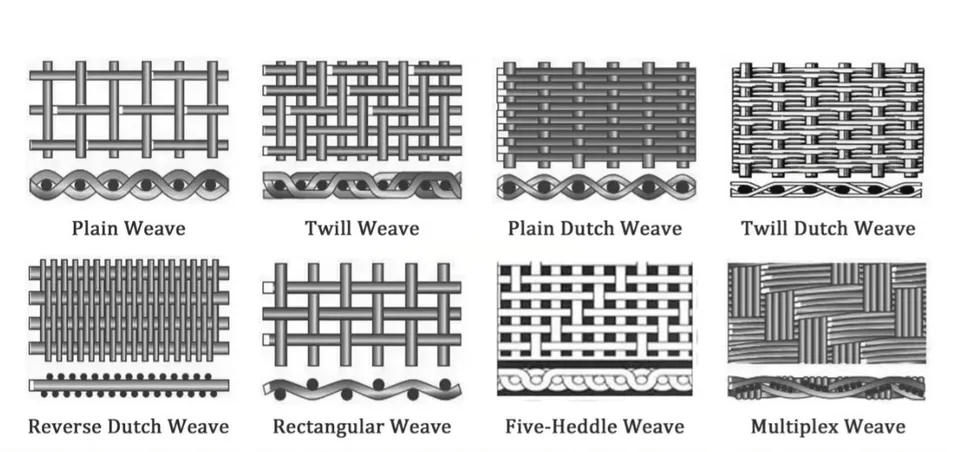

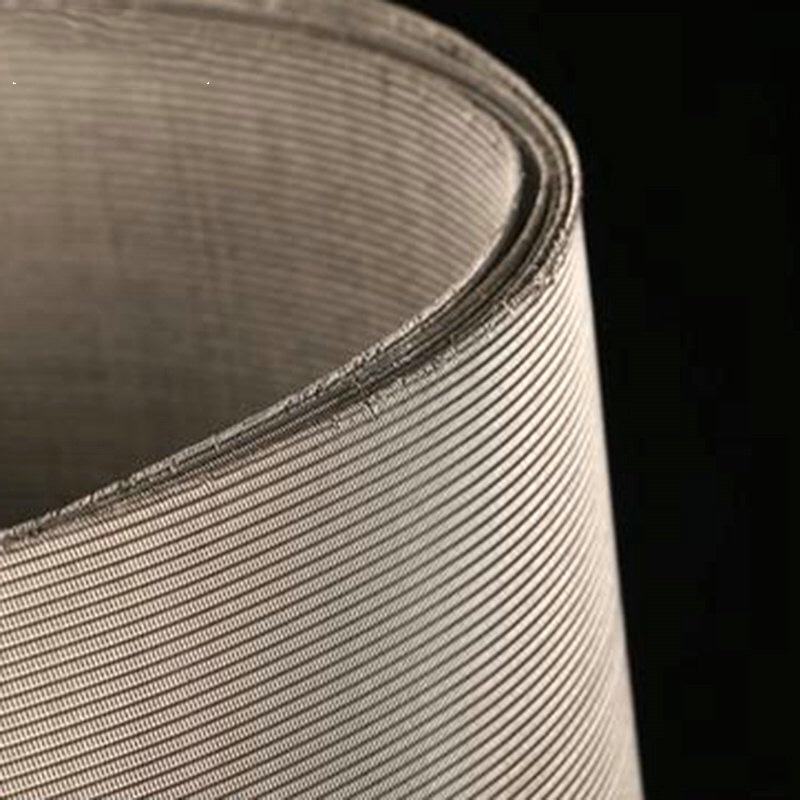

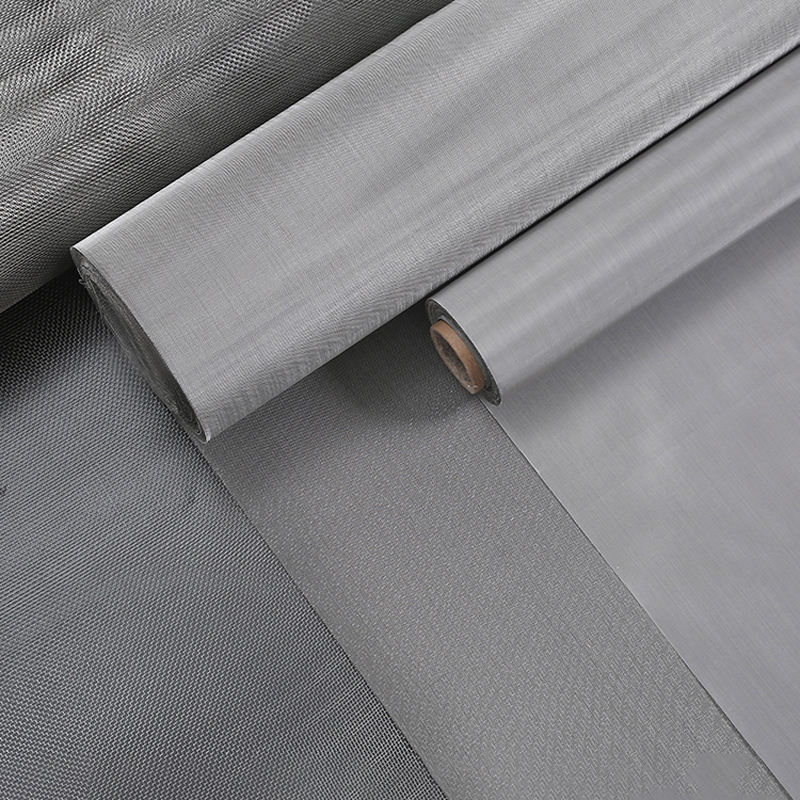

Weaving Type | Plain Weave,Twill Weave,Dutch Weave (Plain Dutch / Twill Dutch),Custom | Tensile Strength | ≥490 MPa |

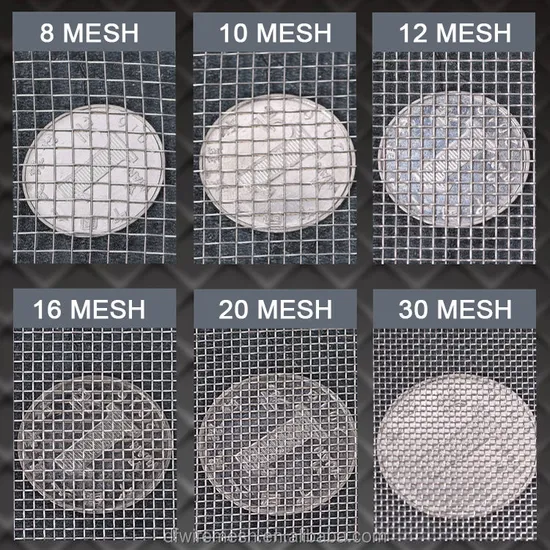

Mesh Size | 10-500 Mesh (Customizable) | Elongation | ≥35% |
Wire Diameter | 0.08mm - 1.5mm (Customizable) | Service Temperature | ≤300°C (Long-term),≤400°C (Short-term) |
Width | 0.5m - 3m (Customizable,max width 3m) | Surface Treatment | Annealed,Polished,Pickled,Passivated |
Length | 1m - 30m / Roll (Customizable) |
Element | C | Cr | Ni | Mo | Cu | Mn | Si | P | S |
Content | ≤0.02 | 19-23 | 23-28 | 4.0-5.0 | 1.0-2.0 | ≤2.0 | ≤1.0 | ≤0.045 | ≤0.030 |

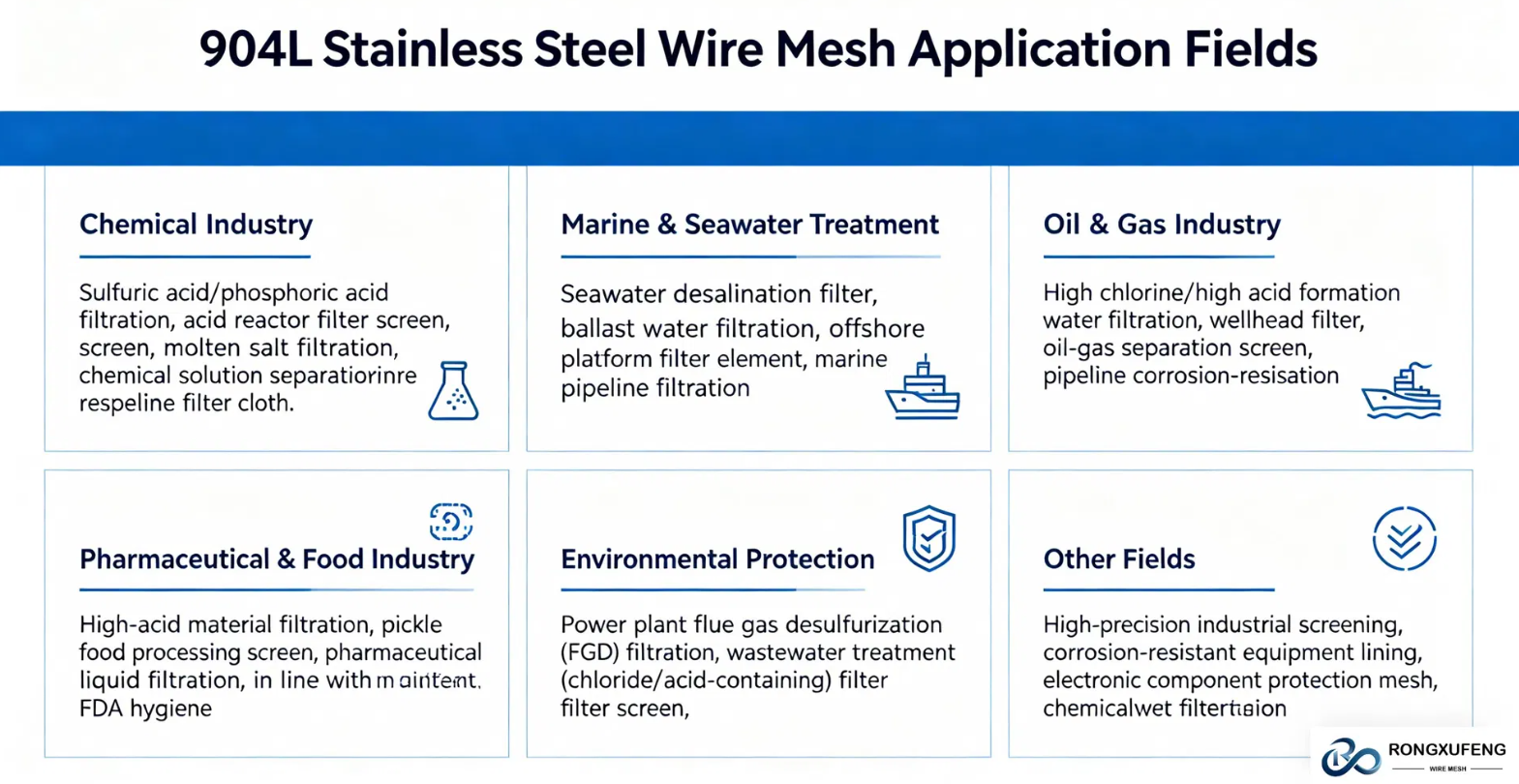

Application Fields
Focus on industrial filtration and harsh environment applications, perfectly matching the needs of chemical, marine, oil and gas, pharmaceutical and other industries:
•Chemical Industry:Sulfuric acid/phosphoric acid filtration, acid reactor filter screen, molten salt filtration, chemical solution separation, corrosion-resistant filter cloth.
•Marine & Seawater Treatment :Seawater desalination filter, ballast water filtration, offshore platform filter element, marine pipeline filtration.
•Oil & Gas Industry :High chlorine/high acid formation water filtration, wellhead filter, oil-gas separation screen, pipeline corrosion-resistant filtration.
•Pharmaceutical & Food Industry :High-acid material filtration, pickle food processing screen, pharmaceutical liquid filtration, in line with FDA hygiene standards.
•Environmental Protection:Power plant flue gas desulfurization (FGD) filtration, wastewater treatment (chloride/acid-containing) filter screen, dust removal and separation.
•Other Fields:High-precision industrial screening, corrosion-resistant equipment lining, electronic component protection mesh, chemical laboratory filtration
Product Advantage
•High Quality Material: 100% pure 904L alloy, in line with international standards, with complete material certification (Mill Test Certificate).

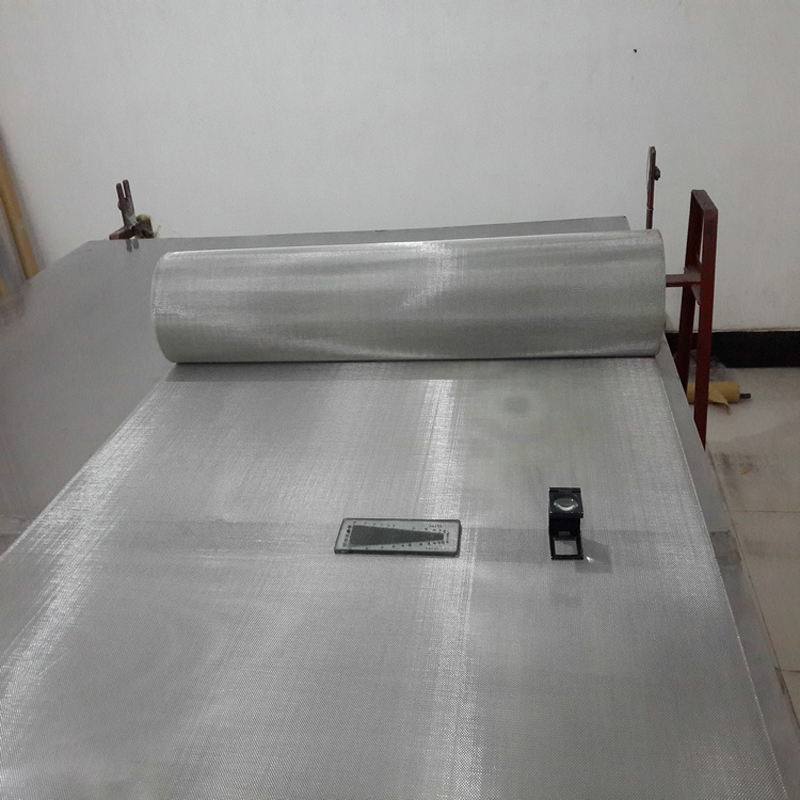

•Professional Weaving: Advanced weaving equipment, uniform mesh, smooth surface, no burrs, high filtration precision and stable performance.
•Cost-Effective: Long service life, reducing the frequency of replacement and maintenance costs; factory direct sales, no middlemen, competitive price.
•Complete After-Sales: Provide technical support, quality inspection report, and solve your use problems in a timely manner.

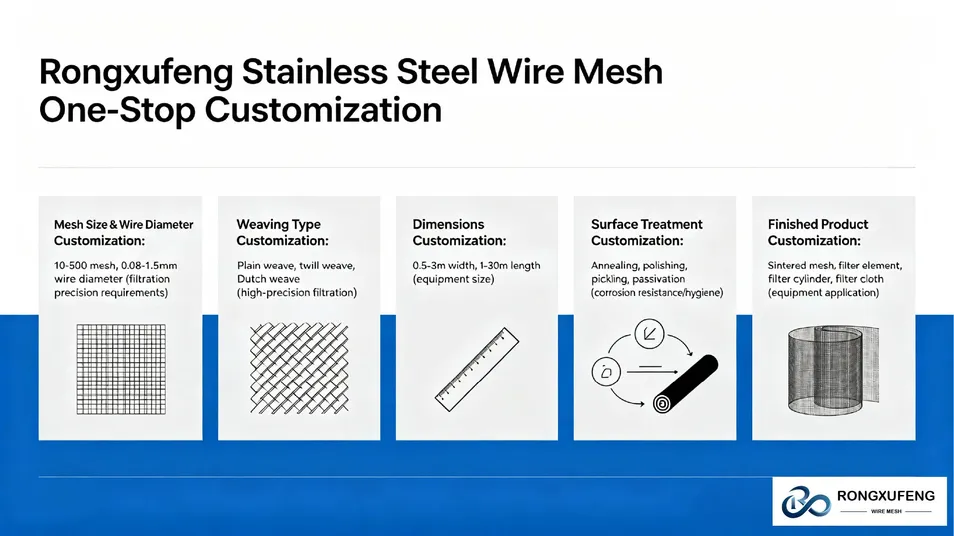

Customization Service
Rongxufeng provide Stainless Steel Wire Mesh one-stop customization to meet your specific application needs, support small batch trial orders and large batch bulk orders:
•Mesh Size & Wire Diameter Customization: According to your filtration precision requirements, customize 10-500 mesh, 0.08-1.5mm *wire diameter. •Weaving Type Customization: Plain weave, twill weave, Dutch weave (dense mesh for high-precision filtration), etc.
Customization Service
•Dimensions Customization: Customize width (0.5-3m) and length (1-30m) according to your equipment size.
•Surface Treatment Customization: Annealing, polishing, pickling, passivation, etc., to meet different corrosion resistance and hygiene requirements.
•Finished Product Customization: Process into sintered mesh, filter element, filter cylinder, filter cloth, etc., directly applicable to your equipment.
